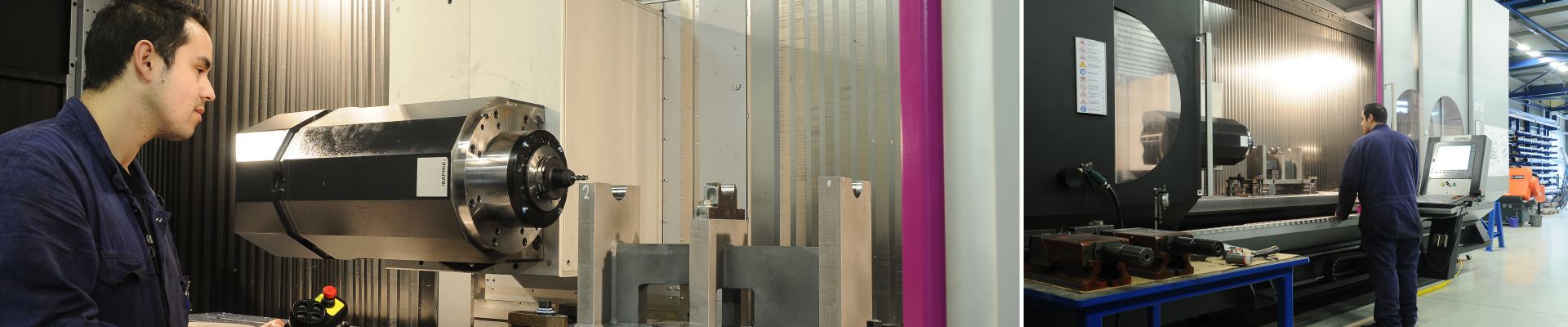

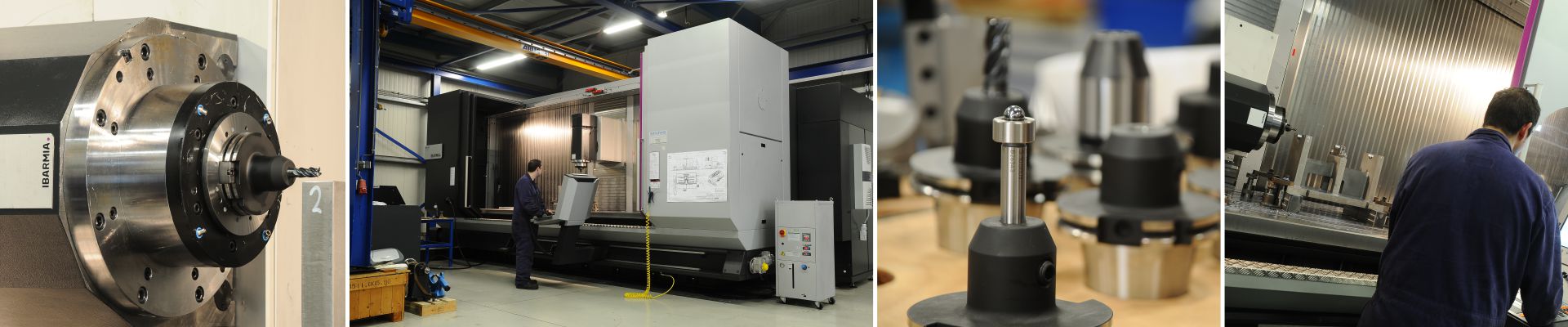

Milling machine Ibarmia ZVH 58 L4000

BoMax features a highly sophisticated five-axis milling machine, the Ibarmia ZVH 58 L4000. This unique CNC machining center is capable of processing material with a length of up to 4 meters. The maximum deflection (working range) of the bit is 800 x 1250 mm.

The entire machining center is operated via the Heidenhain iTNC 530. This CNC control unit is known for its great accuracy. The Ibarmia ZVH 58 L4000 is therefore not only an extremely reliable all-rounder and a mighty workhorse, but also a precision instrument of unparalleled class!

Specifications

Type
CNC Machining Center
Category
Machining Centres  - Horizontal
Manufacturer
Ibarmia
Model
ZVH58L4000 Multiprocess

Control system Heidenhain iTNC530
X-axis 4000 mm
Y-axis 1000 mm
Z-axis 1100 mm
A-axis B:+/-105 mm

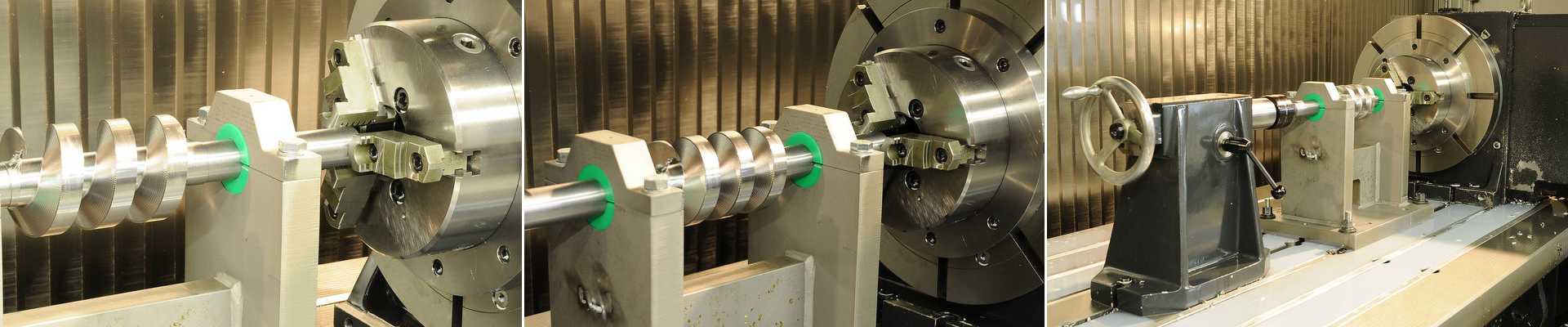

Horizontal MULTIPROCESS rotary table Face plate 250 mm diam, 1500 rpm, 350 Nm (s1)
Vertical MULTIPROCESS rotary table 800 mm diam, 500 rpm, 1500 Nm
Swing 1400 m diam
Fixed table 4600 x 1050 mm
Spindle 32 kw, 180 Nm (s1), 10,000 rpm, HSK100

Equipment / features 30 tool magazine
  Chip conveyor
  CTS 40 bar
  Paper filter
  Full enclosure of the working area
  Water guns
  Air guns
  MQL
  Non Stop Machining dividing wall and software
  Handwheel
  Marposs MIDA tool measuring laser
  Marposs WRSpiece probe
