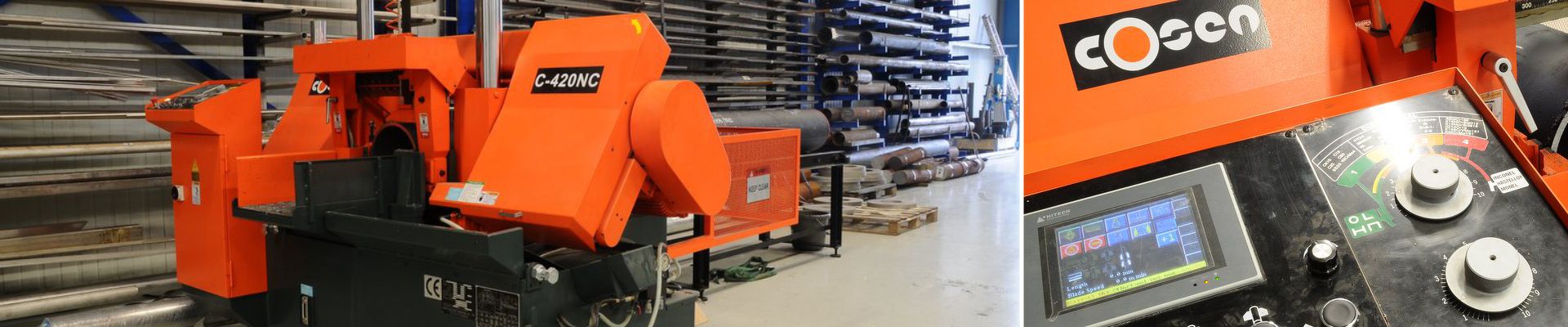

Saw Cosen C-420NC

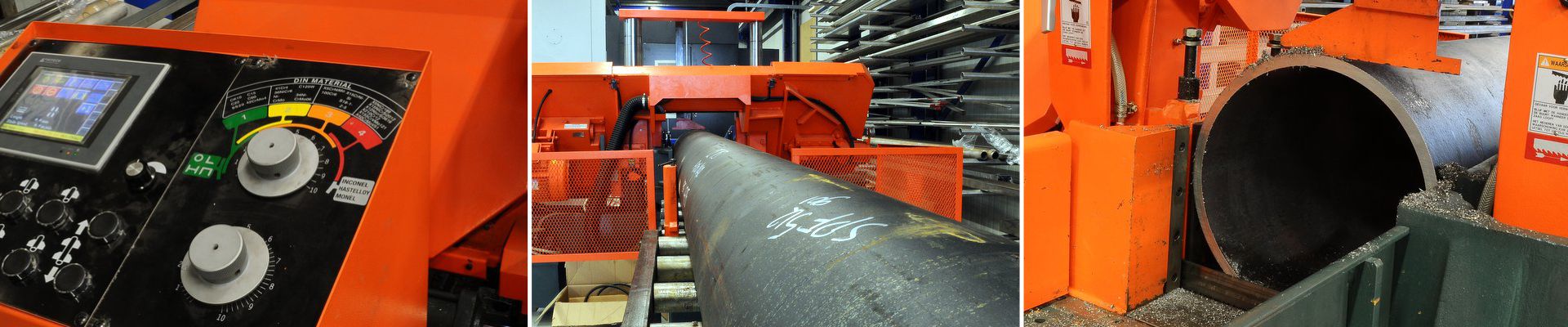

The Cosen C-420NC sawing machine is capable of sawing steel pipes with a diameter of up to 420 mm. The automatic take-over-system provides the capability of producing segments of predetermined lengths of tubes automatically.

Specifications

Capacity Round 420 mm (16.5")
Square 420 mm (16.5")
Rectangular(H x W) 420 x 420 mm (16.5" x 16.5")
Saw Blade Speed 20-100 m/min. (66-328 fpm)
Size(LxWxT) 4770L x 41W x 1.3Tmm
(187.8" x 1.6" x 0.05")
Tension Hydraulic (Automatic blade breakage detection)
Motor Output Saw blade 7.5 HP (5.6 KW)
Hydraulic 2 HP (1.5 KW)
Coolant 1/8 HP (0.1 KW)
Hydraulic Tank   40 L (10.6 gal.)
Coolant Tank   85 L (22.5 gal.)
Vise Control   Hydraulic Full Stroke Cylinder
Automatic Indexing Length Single 503 mm (19.8")
Multiple Max. 99 M (max. 999")
Rest Piece 60 mm (2.4")
Height of Work Bed   731mm (29")
Net/Gross Weight   3000/3300 kgs
Floor Space   2490 x 2360 x1735 mm (98" x 93" x 68")
